SITE INFORMATION DATE

GENERAL STATEMENT
THE PROPOSED PROJECT INVOLVES REZONING AND LANDUSE CHANGE FOR THE EXISTING GOLF
COURSE (±147.13 AC.) AND CONSTRUCTION & DEVELOPMENT OF A 1,038-UNIT RESIDENTIAL PROJECT
WITHIN THE CITY OF TITUSVILLE ROYAL OAKS GOLF COURSE TO THE NORTH OF KNOX MCRAE DRIVE
AND SOUTH OF ROYAL OAK DRIVE. INFRASTRUCTURE IMPROVEMENTS CONSIST OF DRAINAGE
PIPES AND STRUCTURES, PARKING AREAS AND GARAGES, WATER AND SEWER SERVICE.
OWNER ENGINEER
ROYAL OAK GOLF CLUB, INC. MBV ENGINEERING, INC.
AARON KLEIN 1250 W.EAU GALLIE BLVD, UNIT H
HARRISON ST. 2150 COUNTRY CLUB DRIVE MELBOURNE, FL 32935
TITUSVILLE, FL 32780 PHONE: (321) 253-1510
PROJECT APPLICANT SURVEYOR COMMENTS REVISIONS
SOUTH ST. AARON KLEIN 210 PARKTOWNE BLVD, SUITE 1 8 7 6 5 4 3 2 1
LOCATION
ROYAL OAK GOLF CLUB, INC.
DONLEY CONSULTING AARON KLEIN
EDGEWATER, FL 32132
2150 COUNTRY CLUB DRIVE
PHONE: (407) 947-4552
TITUSVILLE, FL 32780
PLAYER CT. SITE ADDRESS 19-1068 DWB 3/27/2023
2150 COUNTRY CLUB DRIVE
TITUSVILLE, FL

S.F. LOTS (11) PROPOSED FUTURE LAND USE PROPOSED ZONING DCM / AFR DWB / BAM
120' x 60' LOTS HIGH DENSITY RESIDENTIAL PD (PLANNED DEVELOPMENT)

TAX PARCEL I.D. NUMBER(S) TAX ACCOUNT NO.
22-35-16-00-6 2207847
KNOX MCRAE DR.

S.F. LOTS (5) TOWNHOME LOTS (115) JOB NO. DESIGNED DRAWN CHECKED DATE ISSUED
120' x 60' LOTS DATE
100' x 20'
LOCATION MAP N PROJECT INFORMATION 147.13 AC 100.00%
ROYAL OAK DR. S.F. LOTS (5) S.F. LOTS (3) PROJECT UNITS 1,037 UNITS CA#3728
SITE AREA (TOTAL)

120' x 60' LOTS
7.05 UNITS PER ACRE
PROJECT DENSITY
120' x 60' LOTS
BUILDING INFORMATION
APARTMENTS 380 UNITS
TOWNHOMES 541 UNITS
SINGLE-FAMILY LOTS 117 UNITS
S.F. LOTS (8)
120' x 60' LOTS BUILDING SETBACKS
SINGLE-FAMILY SETBACKS REQ'D PROVIDED 1250 W. EAU GALLIE BLVD, SUITE H MELBOURNE, FLORIDA 32935 P: 321-253-1510 F:321-253-0911 ALSO WITH OFFICES IN: VERO: 772-569-0035, FT PIERCE: 772-468-9055, PALM CITY: 772-426-9959
FRONT 25' 25'
SAUNDERS PL.
REAR 20' 20'
SIDE CORNER 15' 15'
SIDE INTERIOR 5' 5'
TOWNHOME SETBACKS REQ'D PROVIDED
S.F. LOTS (6) FRONT 20' 20'
FINSTERWALD DR.
120' x 60' LOTS TOWNHOME LOTS (40) REAR 10' 10'
15'
15'
SIDE CORNER
100' x 20' SIDE INTERIOR 5' 5'
APARTMENT SETBACKS REQ'D PROVIDED
FRONT 25' 25'
REAR 25' 25'
SIDE CORNER 25' 25'
TOWNHOME LOTS (108) PARKING INFORMATION
100' x 20' REQUIRED PARKING PROVIDED PARKING
APARTMENTS 2 SPACES / UNIT 2 SPACES / UNIT
S.F. LOTS (7) SINGLE-FAMILY 2 SPACES / UNIT 1 INTERNAL GARAGE SPACE, 1 DRIVEWAY SPACE
TOWNHOMES 2 SPACES / UNIT 1 INTERNAL GARAGE SPACE, 1 DRIVEWAY SPACE
120' x 60' LOTS

S.F. LOTS (10)
120' x 75' LOTS

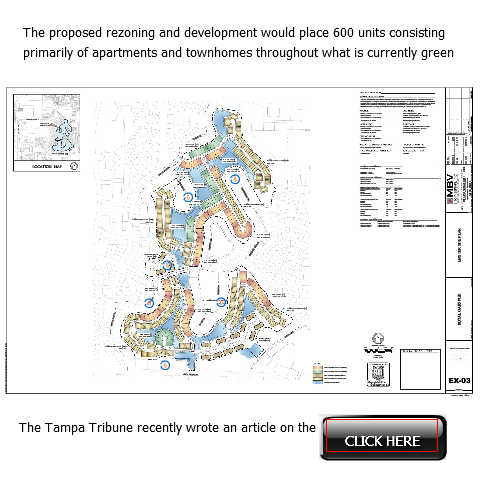

TREVINO CIR. COUNTRY CLUB DR. MASTER SITE PLAN

APARTMENT
UNITS (90)
S.F. LOTS (18)
120' x 60' LOTS

FLORIDA

PALMER DR.
S.F. LOTS (13)
120' x 75' LOTS S.F. LOTS (11)

NELSON PL. TOWNHOME LOTS (66) 120' x 75' LOTS

100' x 20'

TOWNHOME LOTS (50)
S.F. LOTS (11) 100' x 20' ROYAL OAKS PUD
120' x 75' LOTS
ROYAL OAK DR. TRAVIS PL.

S.F. LOTS (8) BARNA AVE. CITY OF TITUSVILLE
120' x 60' LOTS N
APARTMENT
UNITS (300)
W:\19\19-1068 ROYAL OAK PD\CAD\Site\[19-1068] SITE OVERALL.dwg 3/27/2023 9:38 AM DAVIDB
GRAPHIC SCALE
TOWNHOME LOTS (162)
300 0 0 150 300
100' x 20' NOT FOR CONSTRUCTION
PLAN SHEETS ARE PRELIMINARY AND FOR
MUNICIPAL APPROVAL STAMP INFORMATION ONLY. PLANS SHOULD NOT
BE USED AS A BASIS FOR BIDS.
CONTRACTOR SHOULD ORDER THE
( IN FEET ) OFFICIAL PLANS FROM THE ENGINEER OF
RECORD TO ENSURE THAT ANY
1 inch = 300 ft. ADDENDUMS ARE PROPERLY DISTRIBUTED.
PLANS ARE INVALID WITHOUT ENGINEER
OF RECORDS SEAL AND SIGNATURE.
LEGEND
72 HOURS BEFORE DIGGING
CALL TOLL FREE
SINGLE-FAMILY LOTS (120'x75')
SINGLE-FAMILY LOTS (120'x60')
KNOX MCRAE DR.
MULTI-FAMILY APARTMENTS R
SINGLE-FAMILY TOWNHOMES
Know what'sbelow. EX-03
STORMWATER POND
Call before you dig.

SHEET

PRELIMINARY SET
